766
  • MODEL

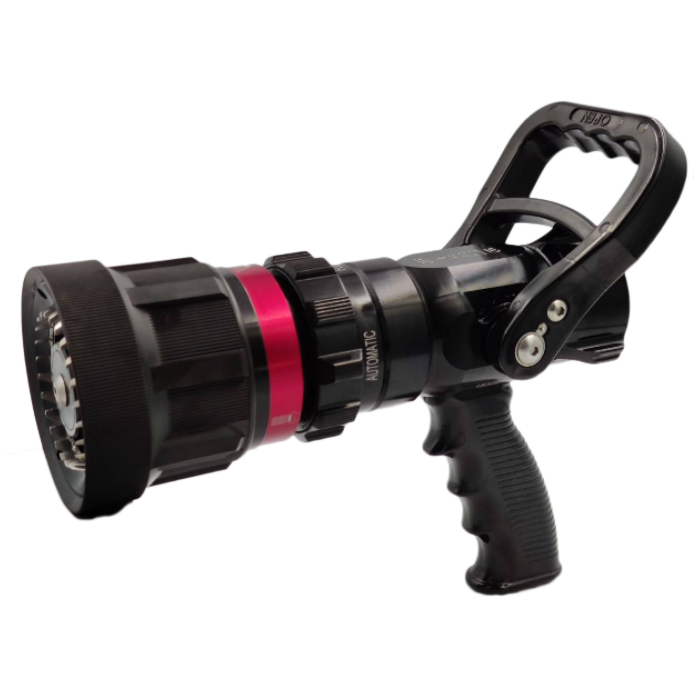

    766
  • QUANTITY
  • SPECIFICATION
FM Certificate Approved
Flow Control Style Selectable flow at a pressure. Flow does not change with the pattern.
Flow Settings at 100 PSI (7 Bar) 30-60-95-125-150 GPM (115-230-360-475-550 LPM)
Coupling Size 1.5" (38mm) or 2.5"(65mm)
Weight 2.5kg
Length 287mm

  • Slide valve control
  • High strength aluminum construction with trademark Nituff finish (50 Microns of PTEF impregnated hard-coated finish)
  • 1/4 turn for quick change from straight stream to fog
  • Integrated stainless steel stream shaper to enhance performance
  • Combination of fog and straight stream
  • Superb wide fog pattern for optimum personal protection
  • Flush without changing pattern or shutting down
  • Standard optimum operating pressure 7 bar. Excellent performance at pressure of as low as 3.5bar
  • Conforms to all aspects of NFPA 1964 (spray nozzles, shutoff and tips), 2008 edition
  • FM approved
​
