625
  • MODEL
    625
  • QUANTITY
  • SPECIFICATION
Flow Control Style One single gallonage flow, and does not change with pattern
Flow Settings at 100 PSI (7 Bar) 500 GPM (1900 LPM)
Inlet Size 2.5"(65mm)
Induction Rates 0.5%, 1%, 3%, 6%
Material Lightweight alloy
Weight 2.86kg
Length 230mm

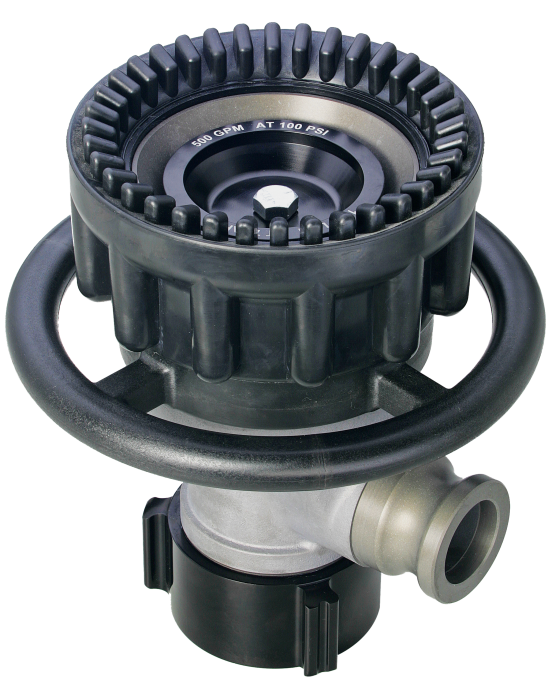

Self Educing Master Stream Nozzles 625

-  Build-in eductor can transform any monitor to a foam station
-  Designed to used with Class A or B foam, including AAAF or fluoroprotein
-  Include a set of calibrated foam orifice plates.  The plates are easily interchangeable to adjust foam proportioning
-  Nozzle pattern is adjustable from straight stream to variable fog angles
-  Baffle is easily removed for flushing debris
-  Simple design and rugged construction ensure low maintenance and long service life
-  Include an industrial grade UV-resistant pick-up hose with fast connection fitting
-  Length of Pick-up hose is 118"(3m) and the hose diameter is 1.5"(38mm)
-  Available in lightweight hardcoat anodized aluminum or heavy-duty brass construction
-  For other non-standard (customized) thread swivel or flow settings, please provide us the specification you need
