  • MODEL
    2848
  • QUANTITY
  • SPECIFICATION
Flow Max. 1250GPM (4800LPM)
Waterway Size 3.0"
Outlet Size 2.5"
Inlet Size 3" or 4" Flange or 3" Female Thread
Travel Range 135° Vertical; 360° Rotation
Material Bronze
Weight 49.6 lbs (22.5 kg)
Complement to
  • 100% Nickel plating on entire surfaces
  • Enhance durability with excellent performance.
  • Apply to seawater

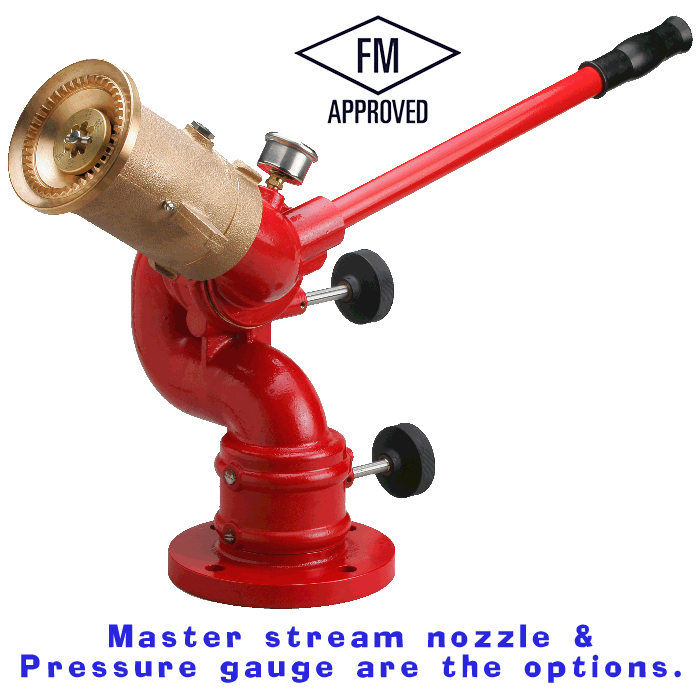

Industrial Monitors 2848

* Full 3.0" waterway for flow efficiency up to 1250GPM.
* The cast ball joints are fitted with Stainless Steel Ball bearings and lubricated with a grease nipple for easy maintenance.
* Easily operated even under high pressure the geared elevation mechanism is fully enclosed for environmental protection.
* Positive twist lock both vertical and horizontal travel.
* Major component made form bronze BC6 (C83600), ideal for corrosive environment.
* Epoxy coating exterior.
* Stainless steel lever.
* Inlet option: 3" Flange, 4" Flange and 3.0" Female thread (conform to ANSI).
* A comprehensive range of water master nozzle and self educting foam master nozzle available to fit for any application.
* Optional accessory: Master stream nozzle and Pressure gauge
 (The monitor includes neither master stream nozzle nor pressure gauge.)
