PRODUCTS| FM Certificate | Approved |
| Flow | Max. 1250GPM (4800LPM) |
| Waterway Size | 3.0" |
| Outlet Size | 2.5" |
| Inlet Size | 3" or 4" Flange or 3" Female Thread |
| Travel Range | 140° Vertical; 360° Rotation |
| Material | Bronze |
| Weight | 55 lbs (25 kg) |
| Complement to |
- 100% Nickel plating on entire surfaces
- Enhance durability with excellent performance.
- Apply to seawater

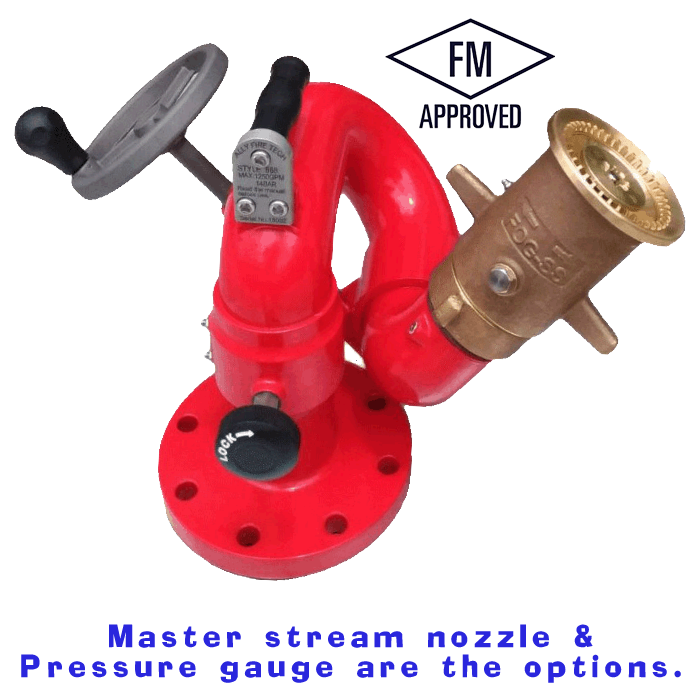

Industrial Monitors 2868
* Full 3.0" waterway.
* Flow up to 1250GPM (4800 LPM).
* Travel range: 360 ° of horizontal and 140° of vertical travel.
* Flow turning vanes in each elbow to reduce friction.
* Major component made form bronze BC6 (C83600), ideal for corrosive environment.
* Epoxy coating exterior.
* Single Hand-Wheel Control.
* Inlet option: 3" Flange, 4" Flange and 2.5" Female thread (conform to ANSI).
* A comprehensive range of water and self educting foam master nozzle available to fit for any application.
* FM approved
- Master stream nozzle and Pressure gauge are the options.
