PRODUCTS| FM Certificate | Approved |
| Flow | Max. 750GPM (2900LPM) |
| Waterway Size | 2.5" |
| Outlet Size | 2.5" |
| Inlet Size | 3" or 4" Flange or 2.5" Female Thread |
| Travel Range | 135° Vertical; 360° Rotation |
| Material | Alloy |
| Weight | 5.6 kg |
| Complement to | 605,606,649,626 |
Industrial Monitors 838
* Full 2.5" waterway for flow efficiency up to 750GPM.
* The cast ball joints are fitted with Stainless Steel Ball bearings and lubricated with a grease nipple for easy maintenance.
* Easily operated even under high pressure the geared elevation mechanism is fully enclosed for environmental protection.
* Positive twist lock both vertical and horizontal travel.
* Epoxy coating exterior.
* Stainless steel lever.
* Inlet option: 3" Flange, 4" Flange and 2.5" Female thread (conform to ANSI).
* A comprehensive range of water master nozzle and self educting foam master nozzle available to fit for any application.
* FM approved

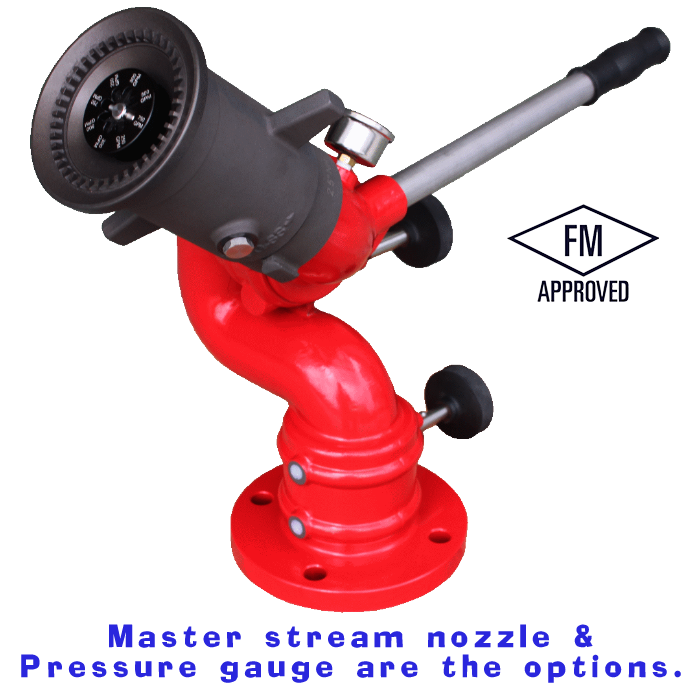

- Master stream nozzle and Pressure gauge are the options.
