868
  • MODEL
    868
  • QUANTITY
Flow Max. 1250GPM (4800LPM)
Waterway Size 3.0"
Outlet Size 2.5"
Inlet Size 3" or 4" Flange or 3" Female Thread
Travel Range 140° Vertical; 360° Rotation
Material Alloy
Weight 20lbs.(9.1kg)
Complement to 605,606,649,626

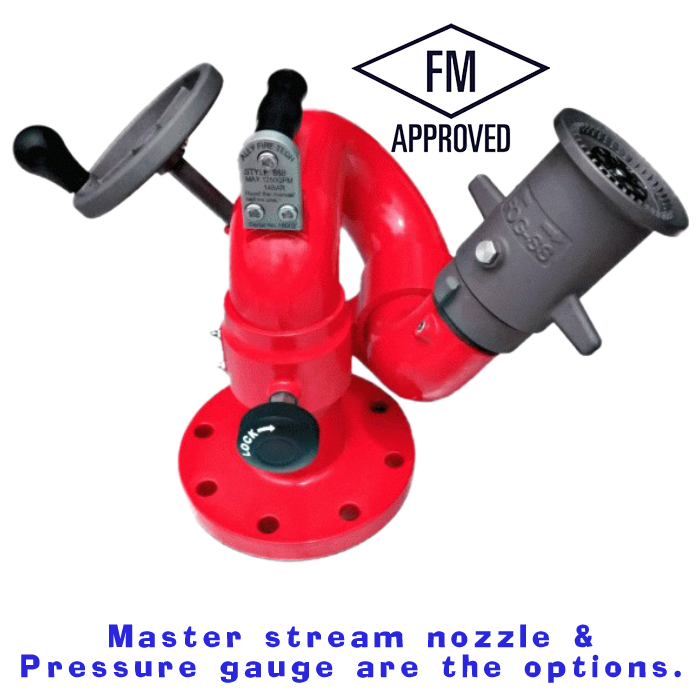

~Industrial Monitors 868

* Full 3.0" waterway.
* Flow up to 1250GPM (4800 LPM).
* Travel range: 360 ° of horizontal and 140° of vertical travel.
* Flow turning vanes in each elbow to reduce friction.
* Epoxy coating  exterior.
* Single Hand-Wheel Control.
* Inlet option: 3" Flange, 4" Flange and 2.5" Female thread (conform to ANSI).
* A comprehensive range of water and self educting foam master nozzle available to fit for any application.

  • Master stream nozzle and Pressure gauge are the options.
