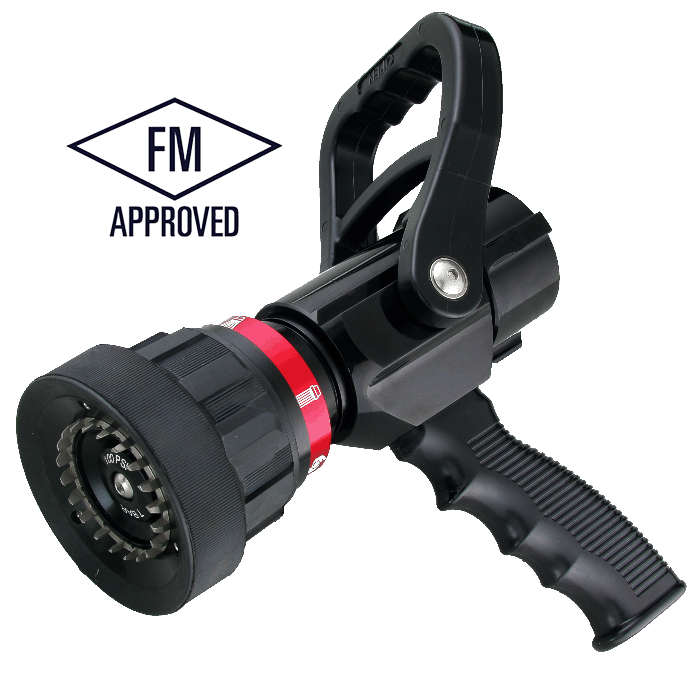

736
  • MODEL
    736
  • QUANTITY
  • SPECIFICATION
FM Certificate Approved
Flow Control Style One single gallonage flow and does not change with pattern.
Flow Settings at 100 PSI (7 Bar) 125 GPM ( 475 LPM)
Coupling Size 1.5"(38mm)
Material Lightweight Aluminum
Weight 1.94kg
Length 233mm
CONSTANT GALLONAGE NOZZLES
  • One single gallonage flow
  • Provide standard flow 60, 95 or 125 GPM (230, 360 or 475 LPM) for choice.
  • Flow remains constant gallonage does not change with pattern
  • Combination of fog and straight stream
  • 1/4 turn from straight stream to fog
  • Detent design for flow selector
  • Ball shutoff
  • Meets NFPA1964 Standard
  • All lightweight materials, hard coat anodized aluminum.
  • Provides NH, BSP and NPSH standard swivels for choice
  • For other non-standard (customized) thread swivel or flow settings, please provide us the specification you need
  • FM approved
